Home Stainless Steel IBC Tote IBC SS Tank 1000l with Large Opening Cover

The IBC SS Tank 1000L with Large Opening Cover is designed for applications where easy access to the tank interior is essential. Unlike standard IBCs with a small 150mm top opening, this tank features a wide‑aperture hinged lid that allows operators to add dry ingredients, insert mixing equipment, or perform thorough cleaning without disassembly. Built from 304 or 316L stainless steel with sanitary welds and a sloped bottom for complete drainage. Suitable for chemical blending, food processing, and pharmaceutical intermediate storage.

库存： 0
Add to Basket

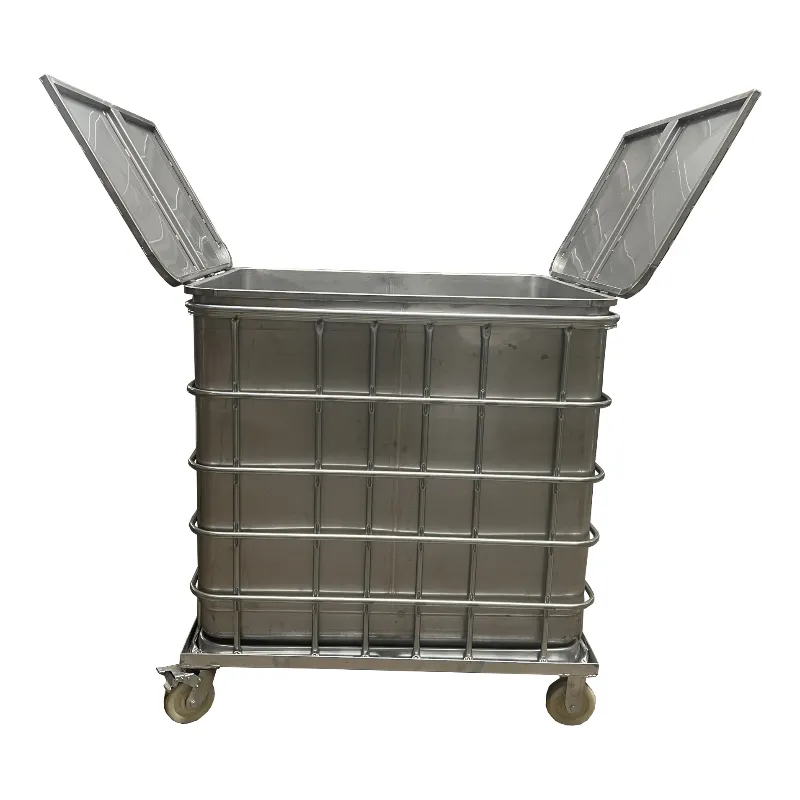

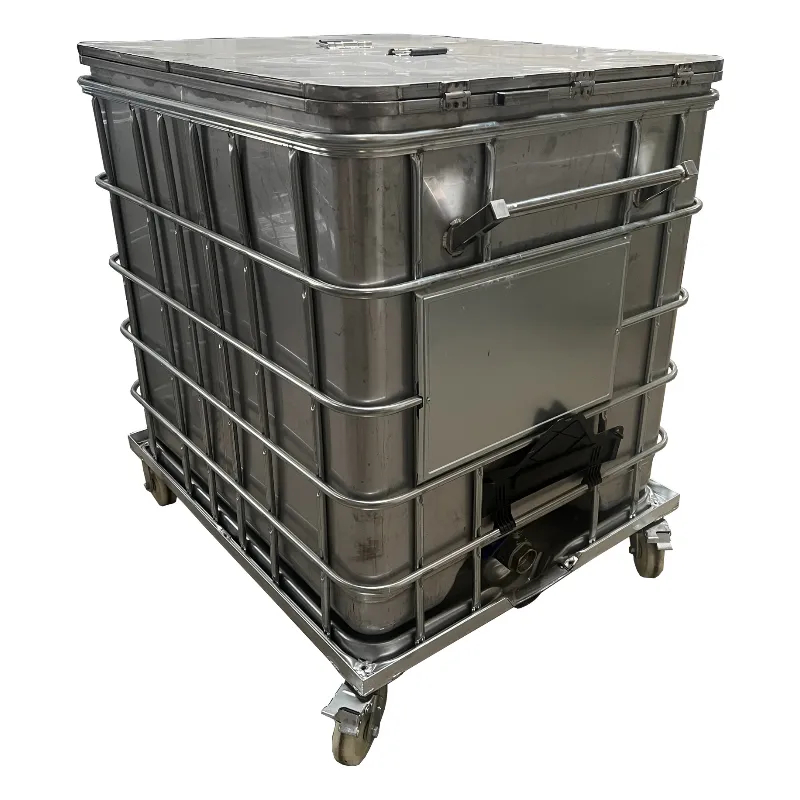

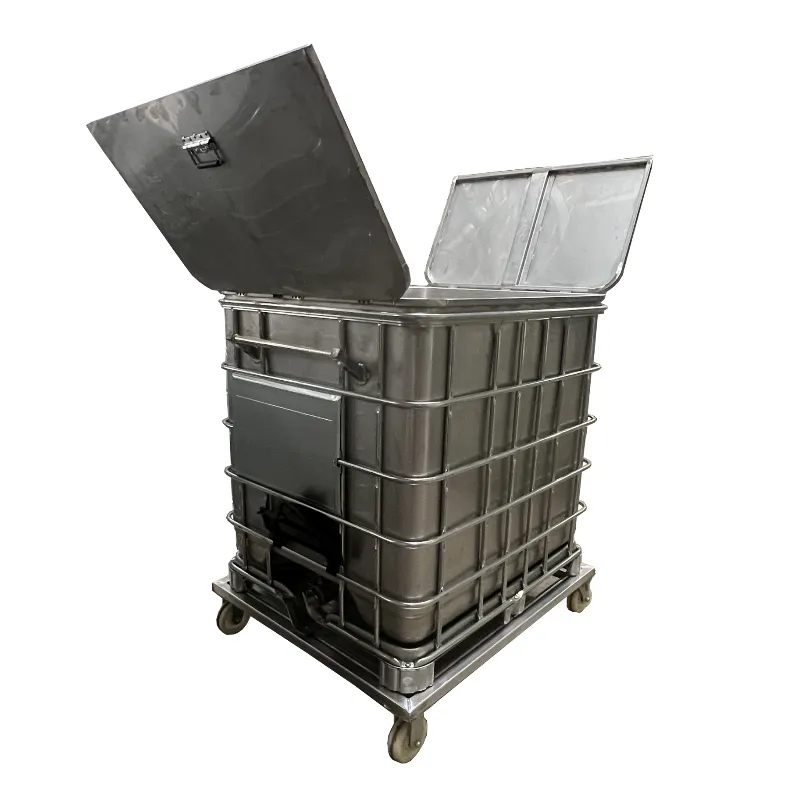

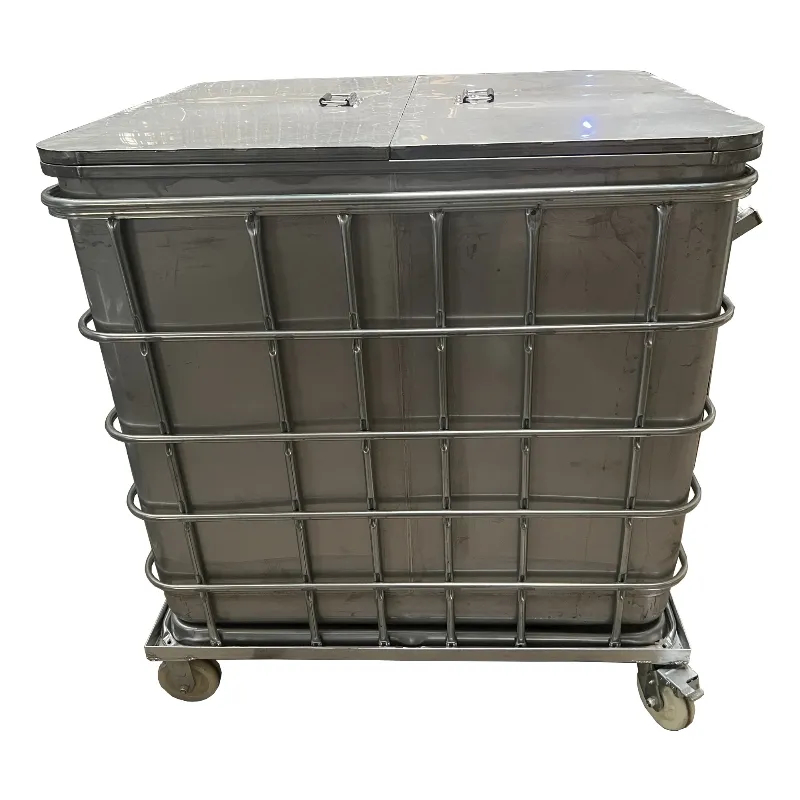

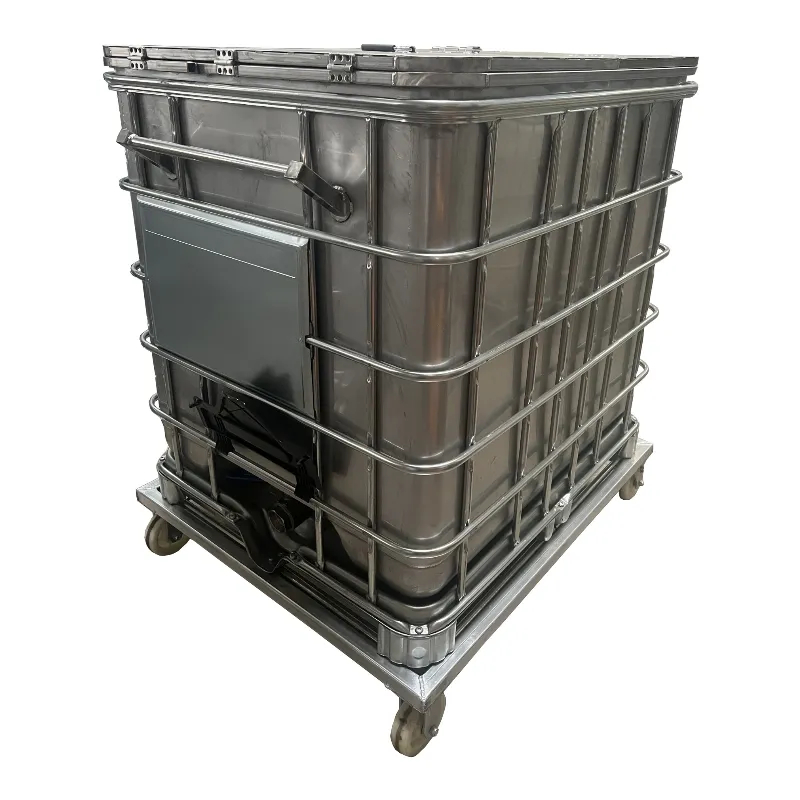

IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover
IBC SS Tank 1000l with Large Opening Cover

Product Overview

Key Specifications

Parameter: Value

Capacity: 1000 liters (264 US gallons)

Material Grade: 304 or 316L stainless steel

Opening Type: Large‑aperture hinged lid with clamp ring

Lid Diameter Approximately 600 – 800 mm

External Dimensions: 1200 mm (L) × 1000 mm (W) × ~1200 mm (H)

Wall Thickness: 1.5 mm, 2.0 mm, or 2.5 mm (selectable)

Internal Finish: 2B mill finish to mirror polish (Ra ≤ 0.8µm)

Bottom Type: Sloped or conical for complete drainage

Outlet: 50 mm ball valve (standard); other valves available

Base: Welded stainless steel stand or IBC pallet base

Stacking: Supported for stationary use (not designed for stacking)

Technical Specifications

Detailed Specifications
Construction & Material
The tank is fabricated from 304 or 316L stainless steel, with wall thickness options of 1.5mm, 2.0mm, or 2.5mm to suit different product weights and handling demands. All interior surfaces are polished (Ra ≤ 0.8µm optional for sanitary applications), and every weld is fully penetrated and ground smooth to eliminate crevices where residues could accumulate.

The large opening cover is hinged for single‑handed operation and secured with a clamp ring or quick‑release latches. A gasket ensures a liquid‑tight seal. For pressure or vacuum applications, a bolted lid can be substituted.

Custom Options
Custom manhole: Alternative size or location
Heating / Cooling / Mixing: Jackets, coils, or side‑entry agitators
Level gauges: Sight glass, magnetic flap, or electronic sensor
Nitrogen injection connector: For blanketing sensitive products
Laser marking & logos: Permanent branding per your artwork
Any combination of fittings: Inlets, outlets, vents, CIP spray balls, thermo‑wells, and instrument ports

Quality & Documentation
Every tank is welded by certified pressure vessel welders and pressure‑tested before leaving our workshop. A complete documentation package is provided: 3.1 material certificates, weld maps, pressure test reports, and surface finish records (where required).

Applications

Food & Beverage
Fruit juices, edible oils, syrups, dairy, wine/beer – no flavor transfer, easy to clean.

Chemical
Acids, solvents, detergents, water treatment chemicals – corrosion-resistant, UN-certified available.

Pharmaceutical
APIs, intermediates, bulk ingredients – mirror-polished interior, full traceability.

Industrial
Coolants, lubricants, waste collection, in-process storage – durable and space-efficient.

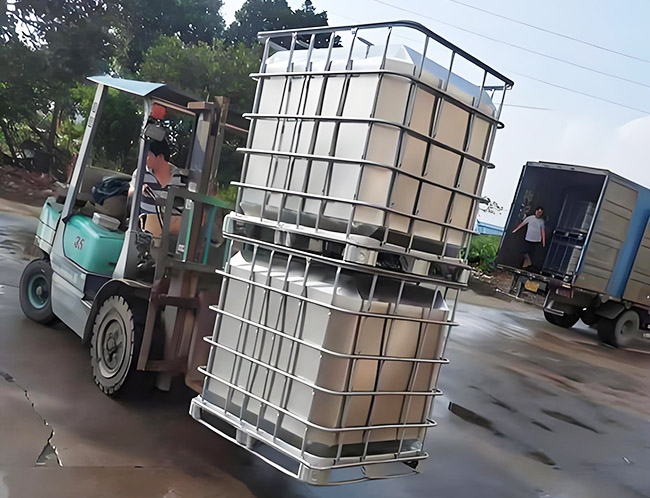

Application of stainless steel ton barrels

Why Choose Us

Fulait-ton-drum-warehouse

Download

Before you click download, here's the truth:


These aren't just PDFs we threw together overnight. They're the same spec sheets, material certs, and inspection reports we've been sending real customers for the past 15 years.


The 316/304L spec sheet? That's the one we send to pharma companies in Ireland who need to prove every weld. The UN cert sample? That's what got a chemical distributor in Houston through their DOT audit without a single finding.


Download them. Read them. Then imagine getting a fresh set with your name on every page.

Product Manual

FAQ

  • Q: Q: What's the lead time?
    A:

    A: Standard: 15-20 working days. Custom: 25-35 working days.

  • Q: Q: Do you ship worldwide?
    A:

    A: Yes. We export to 23 countries.

Get a Quote

Tell us what you need:Product model / capacity, Quantity, Valve type, Any special requirements (UN cert, custom sizes, etc.).
We'll respond within 24 hours with pricing and lead time.
Email: admin@stainlesssteelibc.com / Phone: +86-13333115568
