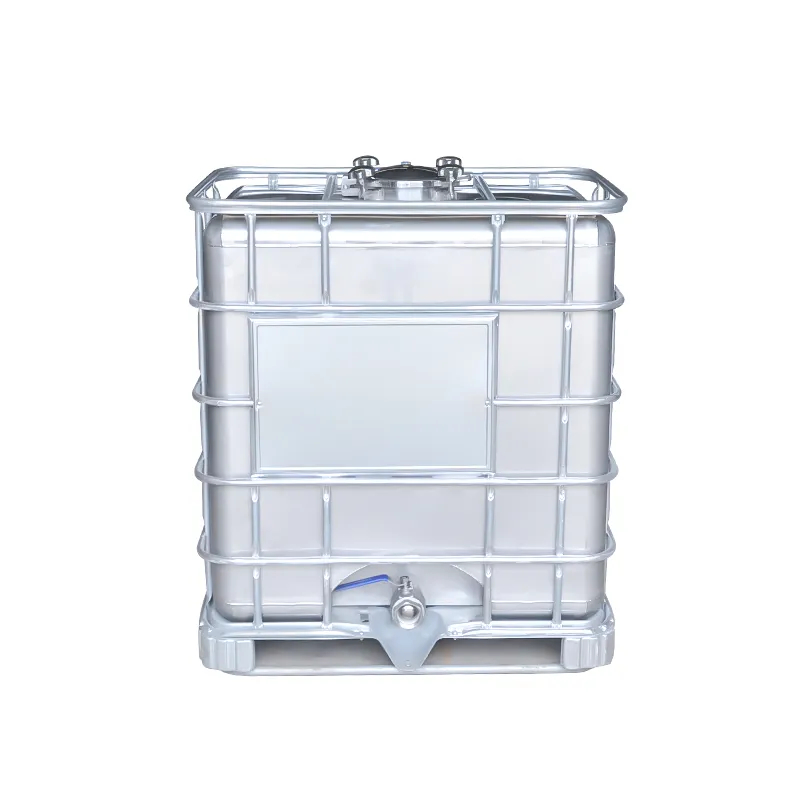

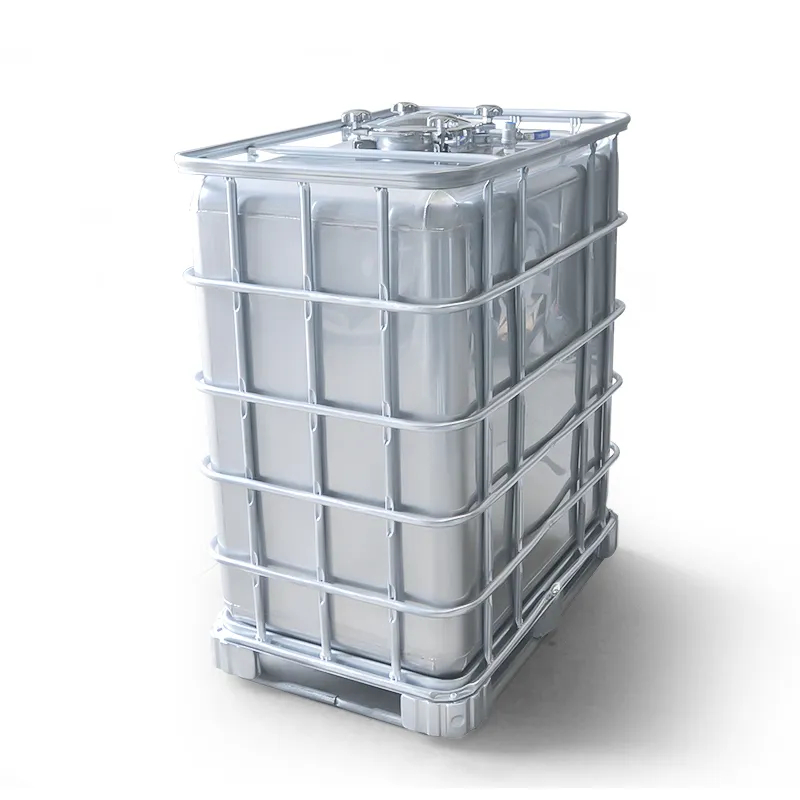

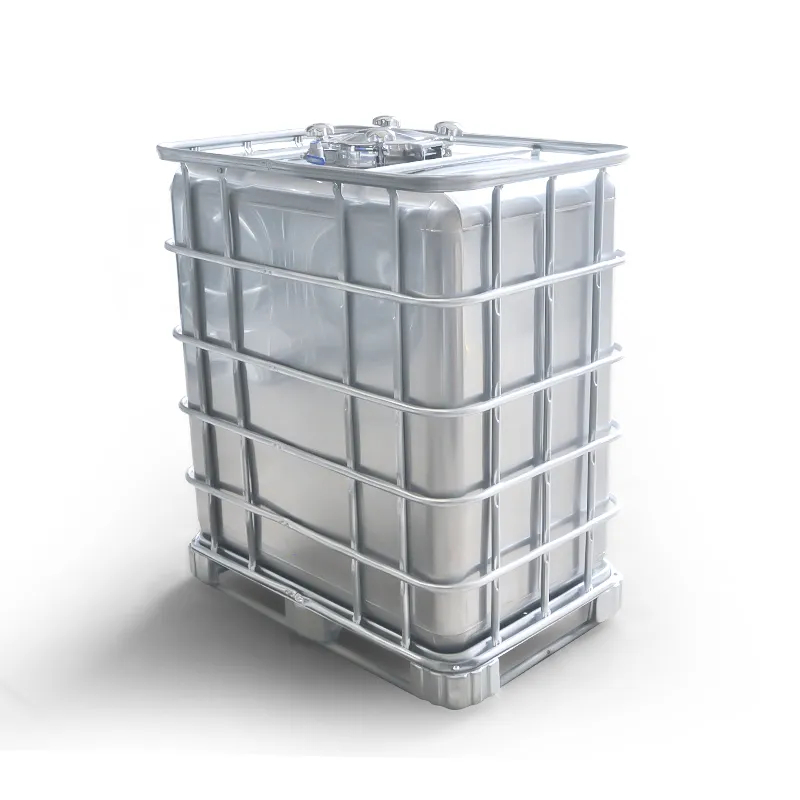

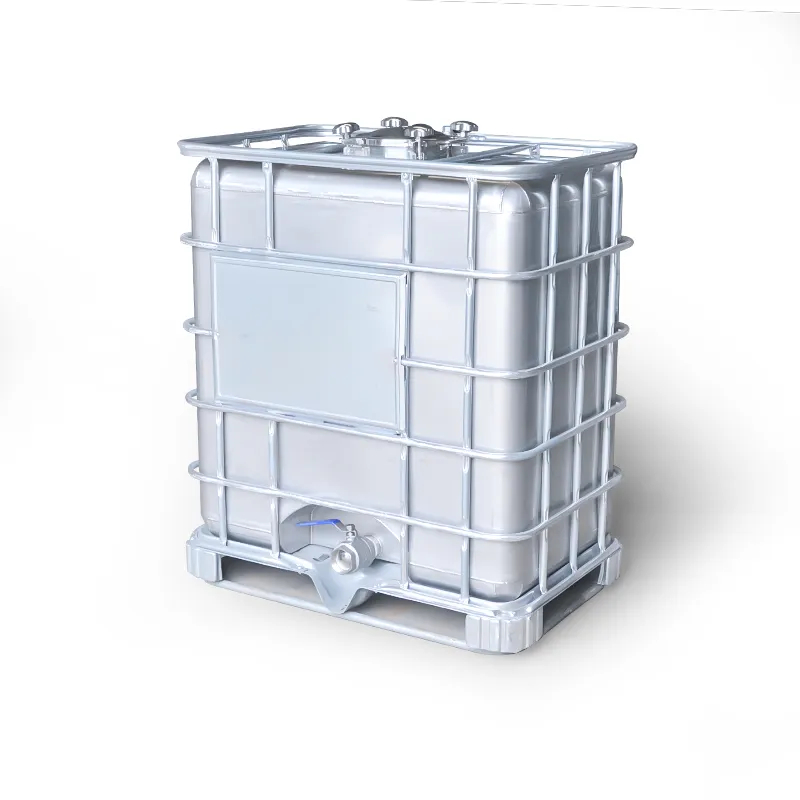

Stainless Steel Tank Vertical 500L

When floor space is tight, go vertical. A 500L vertical stainless steel tank takes up less than half the footprint of a horizontal tank with the same capacity, making it the obvious choice for facilities where square footage matters.

This tank is designed for gravity-fed systems, where the height creates natural pressure for flow. The vertical orientation also simplifies cleaning—solids settle at the bottom where the outlet is located, and the smooth cylindrical walls allow for effective CIP spray coverage.

We build these for customers who need efficient use of floor space: processing plants with crowded layouts, laboratories with limited room, or any application where a small footprint matters. The tall, narrow profile fits into corners, between equipment, or along walls where a wider tank wouldn't go.

Fabricated from 304 or 316L stainless steel, with a sloped or conical bottom for complete drainage. Full documentation included with every order.

库存： 0

Inquire

Add to Basket

Product Overview

Key Specifications

Capacity: 500 liters (132 US gallons)

Orientation: Vertical

Material Grade: 304 or 316L stainless steel, with 3.1 mill certificates

Dimensions: Approximately 700mm to 800mm diameter × 1400mm to 1500mm height (varies by design)

Footprint: Approximately 0.5 to 0.6 square meters

Wall Thickness: 2mm to 3mm

Internal Finish: 2B mill finish to mirror polish (Ra ≤ 0.8μm) for sanitary applications

Bottom Configuration: Sloped or conical for complete drainage

Top Configuration: Closed top with manway, or open top with hinged lid

Outlet: 50mm valve located at lowest point, with options for ball valve, butterfly valve, or camlock fitting

Top Fittings: Vent, CIP spray ball connection, instrument ports

Legs: Welded stainless steel legs with adjustable feet, or skirt support

Stacking: Not designed for stacking; intended for stationary use

Technical Specifications

Detailed Specifications

Vertical Orientation

The vertical configuration maximizes storage capacity while minimizing floor space consumption. A 500L vertical tank occupies roughly 0.5 square meters—less than a standard pallet. This allows placement in tight areas where horizontal tanks won't fit.

The height also provides natural head pressure for gravity-fed systems. Depending on the outlet height, a vertical tank can generate sufficient flow without the need for a pump.

Bottom Configuration

Complete drainage is critical in many applications. We offer two bottom designs:

Sloped bottom: The tank bottom slopes 3 to 5 degrees toward the outlet. This design adds minimal height and is suitable for most liquids.

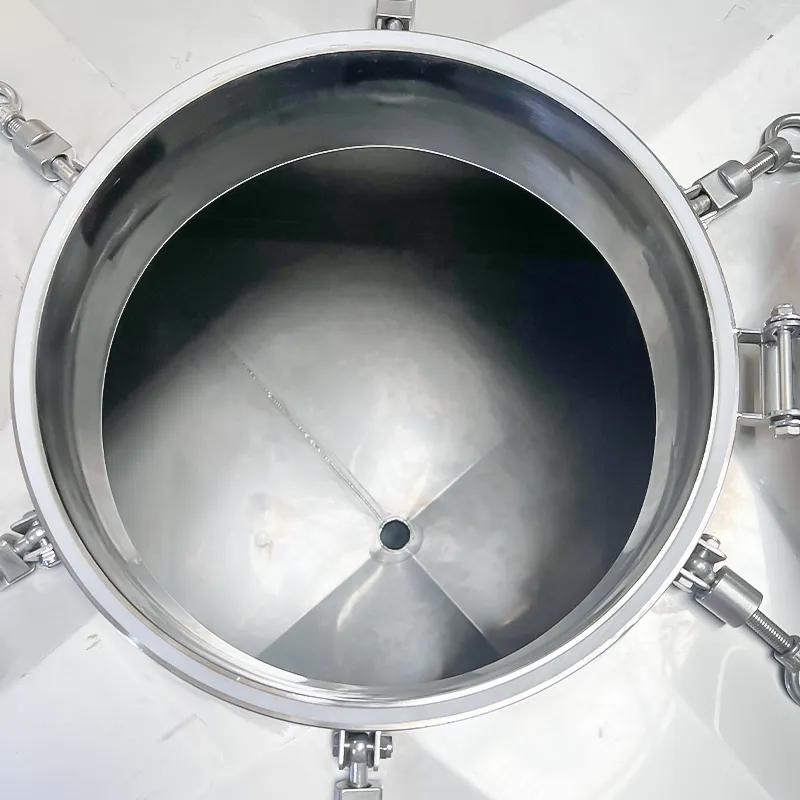

Conical bottom: A full cone directs product to a center outlet. This is the preferred choice for viscous products, slurries, or applications where solids may settle.

The outlet is positioned at the lowest point of the cone or slope, ensuring no product remains after draining.

Top Access

For applications requiring frequent access, we offer an open top with a hinged lid. This allows operators to add ingredients, insert mixing equipment, or visually inspect the tank interior without unbolting fittings.

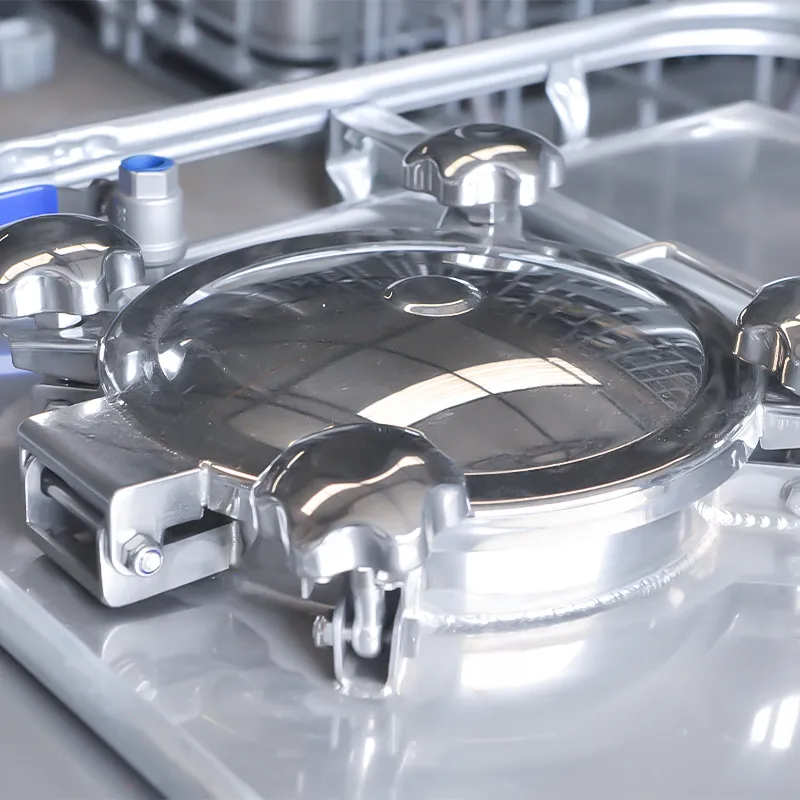

For closed systems, we provide a manway (typically 300mm to 400mm diameter) with a gasketed cover. This maintains a sealed environment while allowing access when needed.

Fittings and Ports

Standard top fittings include:

Vent with filter: Prevents pressure buildup while keeping contaminants out

CIP spray ball connection: For automated cleaning systems

Instrument ports: For temperature sensors, pressure gauges, or level transmitters

Additional ports can be added at custom heights for specific process requirements.

Legs and Support

Stainless steel legs: Welded legs with adjustable feet for leveling on uneven floors. Leg height can be customized to achieve desired discharge height.

Skirt support: A continuous stainless steel skirt provides a clean appearance and is easier to clean around. Preferred in sanitary applications.

Load cells: Optional integration for weighing and inventory control.

Optional Features

Heating Jacket: Full jacket for temperature-sensitive products

Insulation: Jacketed insulation with stainless steel cladding

Agitator: Top-mounted mixer for blending or preventing settling

CIP Spray Balls: Fixed or rotating for automated cleaning

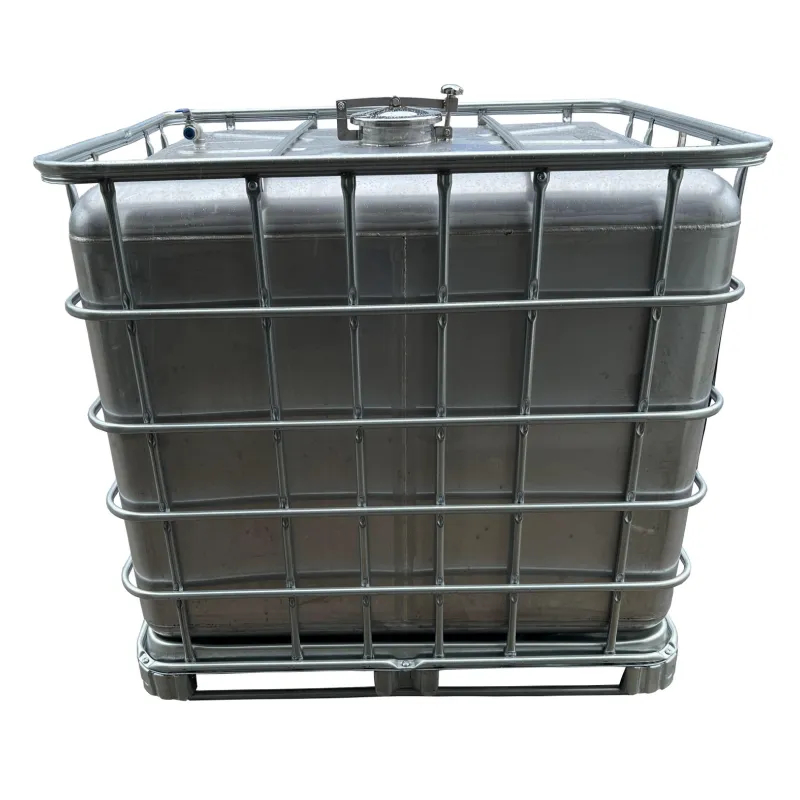

Level Indication: Sight glass, magnetic flap gauge, or electronic transmitter

Insulation Jacket: For temperature maintenance and personnel protection

Applications

Food & Beverage

Juices, oils, sweeteners, dairy, wine/beer – food-grade HDPE, no flavor transfer.

Chemical

Detergents, water treatment chemicals, coolants – UN-rated options available.

Agriculture

Liquid fertilizers, herbicides – UV-stabilized for outdoor use.

Water Treatment

Sodium hypochlorite, alum, polymers – chemically compatible.

Industrial

Waste collection, cooling water – lightweight, durable.

Why Choose Us

Quality You Can Verify

Every stainless steel IBC comes with full traceability—mill certificates, pressure test reports, and weld records. That's why chemical, food, and pharmaceutical clients trust our plastic IBC tanks and stainless steel IBC totes for critical applications.
Built for Your Application

Standard 1000L IBC works for most needs. But when you need a heated IBC, a jacketed stainless steel tank, or custom valves for corrosive liquids, we build exactly what your application requires.
Real People, Real Answers

Email a supplier and get a ticket number? Not here. When you inquire about our 304 or 316L stainless steel IBCs, you reach someone who knows containers—and answers within 24 hours.

Download

Before you click download, here's the truth:

These aren't just PDFs we threw together overnight. They're the same spec sheets, material certs, and inspection reports we've been sending real customers for the past 15 years.

The 316L spec sheet? That's the one we send to pharma companies in Ireland who need to prove every weld. The UN cert sample? That's what got a chemical distributor in Houston through their DOT audit without a single finding.

Download them. Read them. Then imagine getting a fresh set with your name on every page.

Product Manual

FAQ

Q: Q: What's the lead time?

A:

A: Standard: 15-20 working days. Custom: 25-35 working days.
Q: Q: Do you ship worldwide?

A:

A: Yes. We export to 23 countries.
