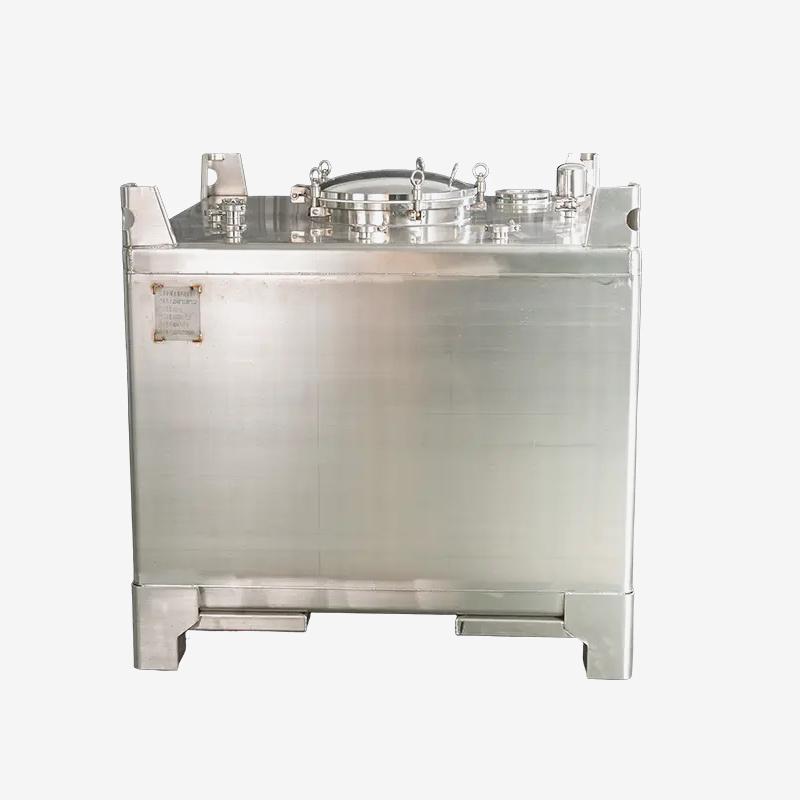

1000L 304 Stainless Steel Square Drum

This 1000L 304 stainless steel square drum is built for bulk storage and transport of diesel, solvents, and industrial chemicals. Unlike round drums, the square shape maximizes space inside shipping containers. External dimensions are 1150×1150×1170mm – stackable and container‑friendly.

Safety features include a 400mm manhole, a 150mm manual vent valve, and a DN50 bottom outlet. The 304 stainless steel liner is corrosion‑resistant and easy to clean. For food‑grade use, we can mirror‑polish the interior (Ra ≤ 0.8μm). Explosion‑proof construction is available. Optional upgrades include a removable frame, integrally stamped liner, or 316 stainless steel for aggressive chemicals.

库存： 0

Inquire

Add to Basket

Product Overview

Key Specifications

Parameter: Value

Capacity: 1000 Liters

Material: 304 Stainless Steel (inner liner)

Shape: Square

Dimensions (L×W×H): 1150 × 1150 × 1170 mm

Manhole: 400mm with gasketed cover

Manual Vent Valve: 150mm

Bottom Outlet: DN50 ball valve

Frame: 304 Stainless Steel (removable optional)

Explosion‑Proof: Optional

Food Grade Optional (mirror polish, Ra ≤ 0.8μm)

Outdoor Suitability: Yes (durable, corrosion‑resistant)

Foldable: No

Handling: Forklift (four‑way pallet entry)

Technical Specifications

Detailed Specifications

Construction & Material

The inner liner is 304 stainless steel. Square shape allows tight packing: four drums fit exactly on a standard 1150×1150mm pallet. You can order standard welded construction or integrally stamped (one‑piece) which has fewer weld seams and a smoother interior. The outer frame is also 304 stainless steel. For highly corrosive contents, upgrade to 316 stainless steel liner or frame, or add a plastic liner inside the 304 frame.

Manhole & Access

The 400mm manhole is large enough for an operator to climb inside for thorough cleaning or inspection. The cover seals with a gasket and clamps. If you don’t need this large access, we can supply a smaller threaded lid, but the standard is 400mm for versatility.

Vent Valve

The 150mm manual vent valve is simple and reliable: twist to open, release pressure, then close. For automatic pressure relief, we can replace it with an auto‑vent that opens at a preset pressure.

Bottom Outlet

The DN50 (2‑inch) ball valve is made of stainless steel with PTFE seals, compatible with diesel, solvents, edible oils, and many industrial chemicals. For higher flow, a DN80 ball valve or butterfly valve is available.

Frame & Handling

The standard frame is welded to the liner. For customers who need to remove the liner for separate transport or replacement, a detachable frame is optional. Both frame types have four‑way forklift pockets. The drum has no casters and is not meant to be rolled; only lifted by forklift or pallet jack.

Testing & Documentation

Each drum is pressure‑tested before shipment. We provide 3.1 material certificates for the 304 stainless steel, a weld map, and a pressure test report. UN certification for dangerous goods is available on request.

Applications

Chemical & Diesel Storage

304 stainless steel resists diesel, petrol, solvents, and industrial chemicals. The 400mm manhole allows easy cleaning between product changes. Explosion‑proof option available for flammable liquids.

Food & Edible Oil

Square shape saves storage space in food warehouses. Upgrade to mirror‑polished interior for edible oils, syrups, juices, and wine. No flavor transfer. Easy to clean via large manhole.

Pharmaceutical Intermediates

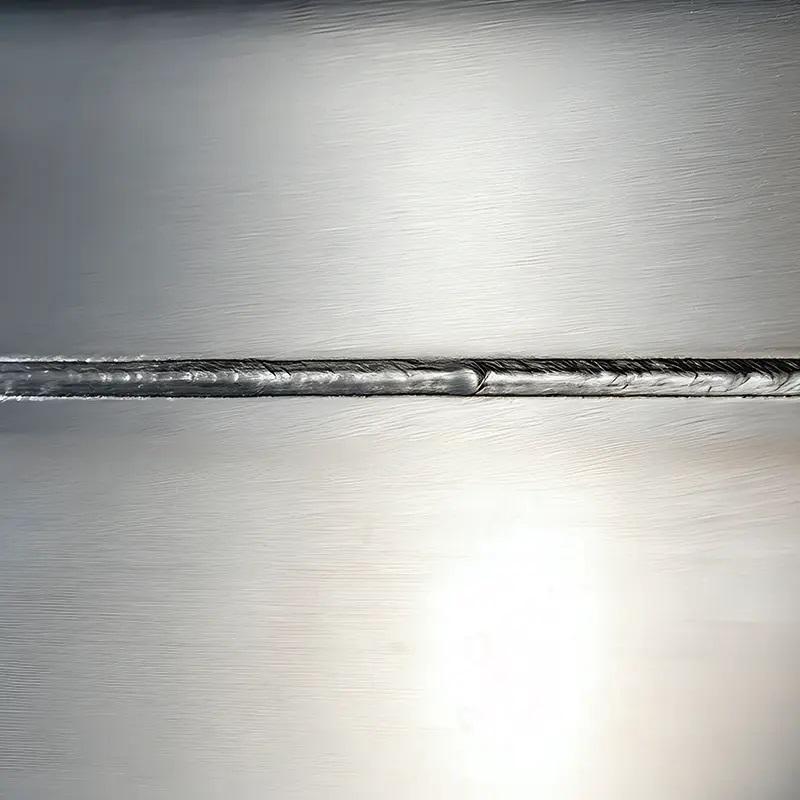

Smooth interior welds and optional mirror polish meet GMP hygiene standards. Full traceability documentation supports regulatory validation.

Water Treatment

Compatible with sodium hypochlorite, alum, polymers, and pH adjusters. DN50 ball valve gives reliable flow control.

Industrial Bulk Liquids

Square drums pack tightly in containers, reducing shipping costs. Durable 304 stainless steel handles coolants, lubricants, and waste liquids.

1000L 304 Stainless Steel Square Drum (1)

Why Choose Us

Quality You Can Verify

Every stainless steel IBC comes with full traceability—mill certificates, pressure test reports, and weld records. That's why chemical, food, and pharmaceutical clients trust our plastic IBC tanks and stainless steel IBC totes for critical applications.
Built for Your Application

Standard 1000L IBC works for most needs. But when you need a heated IBC, a jacketed stainless steel tank, or custom valves for corrosive liquids, we build exactly what your application requires.
Real People, Real Answers

Email a supplier and get a ticket number? Not here. When you inquire about our 304 or 316L stainless steel IBCs, you reach someone who knows containers—and answers within 24 hours.

Download

Before you click download, here's the truth:

These aren't just PDFs we threw together overnight. They're the same spec sheets, material certs, and inspection reports we've been sending real customers for the past 15 years.

The 316L spec sheet? That's the one we send to pharma companies in Ireland who need to prove every weld. The UN cert sample? That's what got a chemical distributor in Houston through their DOT audit without a single finding.

Download them. Read them. Then imagine getting a fresh set with your name on every page.

Product Manual

FAQ

Q: Q: What's the lead time?

A:

A: Standard: 15-20 working days. Custom: 25-35 working days.
Q: Q: Do you ship worldwide?

A:

A: Yes. We export to 23 countries.
